DIN 6796

TECHNICAL DIAGRAM OF DIN 6796

We manufactures Belleville washer in imperial as well as metric sizes. Belleville washers also called conical spring washers are manufactured as per DIN 6796 and are designed specifically for Heavy Duty Bolted section such as Bus Bars, Transformers, Rectifiers, Heat Exchangers, Transmission etc. These washers are intended to counteract the effect of setting which results in bolt/nut assemblies working loose. They do not effectively prevent loosening of the assembly under varying radial load and are designed for use with short bolts predominantly subject to thrust.

Heavy Duty Belleville Washers As per DIN 6796

Material : 50CrV4 or Spring Steel CK75

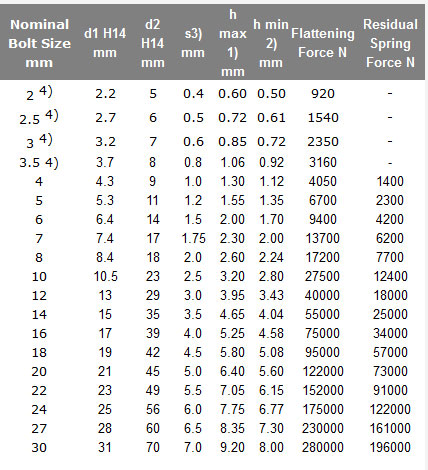

TECHNICAL DATA OF DIN 6796
